产品简介：

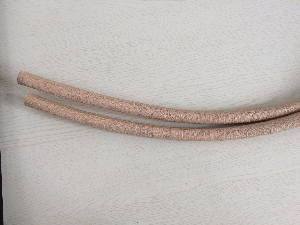

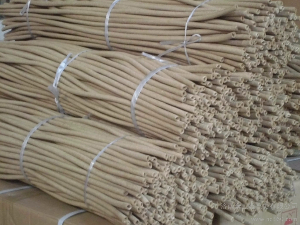

皱纹纸管是由电工皱纹绝缘纸经特殊工艺加工而成，主要用于油浸式变压器内导线的绝缘包裹材料。
皱纹绝缘纸管常用规格表
序 号 No. | 品 名 Product Name | 内 径 Inner Diameter | 外 径 Outer Diameter | 长 度 Length | 备 注 Remarks |
1 | 皱纹绝缘纸管 Crinkled Insulating Paper Tube | 4mm | 6mm | 1000mm | |
2 | 皱纹绝缘纸管 | 4mm | 8mm | 1000mm | |
3 | 皱纹绝缘纸管 | 6mm | 9mm | 1000mm | |
4 | 皱纹绝缘纸管 | 7mm | 8mm | 1000mm | |
5 | 皱纹绝缘纸管 | 7mm | 9mm | 1000mm | |
6 | 皱纹绝缘纸管 | 7mm | 10mm | 1000mm | |
7 | 皱纹绝缘纸管 | 8mm | 10mm | 1000mm | |
8 | 皱纹绝缘纸管 | 10mm | 12mm | 1000mm | |
9 | 皱纹绝缘纸管 | 11mm | 12mm | 1000mm | |
10 | 皱纹绝缘纸管 | 11mm | 13mm | 1000mm | |
11 | 皱纹绝缘纸管 | 11mm | 14mm | 1000mm | |
12 | 皱纹绝缘纸管 | 12mm | 16mm | 1000mm | |
13 | 皱纹绝缘纸管 | 13mm | 14mm | 1000mm | |
14 | 皱纹绝缘纸管 | 13mm | 16mm | 1000mm | |
15 | 皱纹绝缘纸管 | 14mm | 16mm | 1000mm | |
16 | 皱纹绝缘纸管 | 14mm | 17mm | 1000mm | |
17 | 皱纹绝缘纸管 | 16mm | 19mm | 1000mm | |
18 | 皱纹绝缘纸管 | 18mm | 21mm | 1000mm | |
19 | 皱纹绝缘纸管 | 20mm | 25mm | 1000mm | |
20 | 皱纹绝缘纸管 | 34mm | 38mm | 1000mm | |
21 | 皱纹绝缘纸管 | 46mm | 50mm | 1000mm | |
22 | 皱纹绝缘纸管 | 68mm | 72mm | 1000mm |
也可按照客户要求加工各种规格皱纹绝缘纸管
贮存：产品应贮存于干燥而洁净的室内，不得挤压，靠近火源、热源或受日光直射。
